Keyless Mechanical Door Lock - Passcode/Key Entry for Garage, Office, Hotel

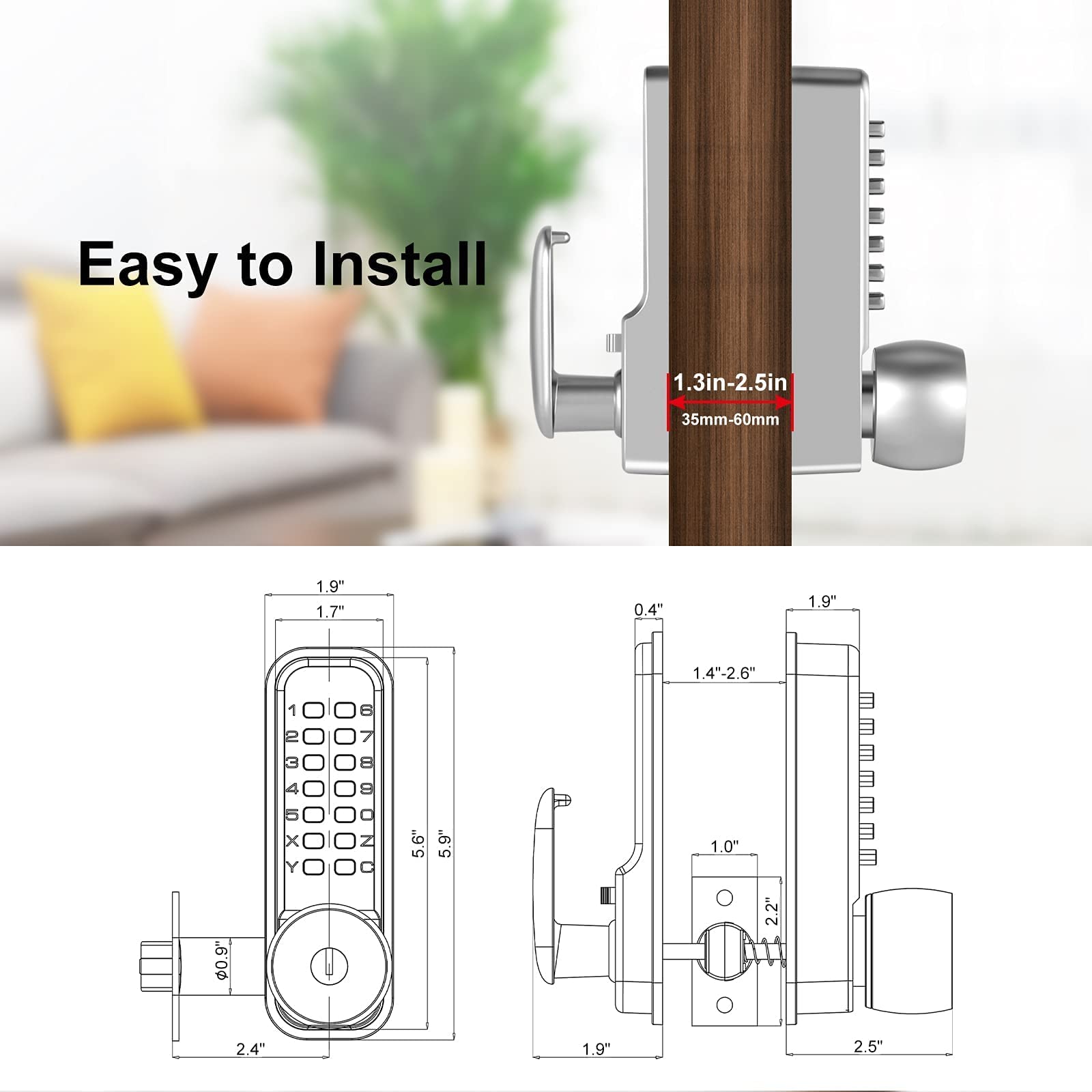

100% Mechanical Combination Lock - No Batteries, Power or Wiring Required Two modes are available for your use Working mode: the door lock works normally, enter your set code to open the door lock Normally open mode: the latch retracts and the locking function is no longer performed. (It is necessary to rotate the handle to ensure that the latch will not lock) Simply toggle the button To set the password, use a screwdriver to press the password key as shown in the illustration, then rotate it 180° from F to G. Mechanical combination locks can theoretically be set with 1-11 digits. From the security and practical point of view, it is recommended that the password be set to 3-7 digits. When the password is wrong or invalid, press "C" to reset and enter the correct password to unlock the door. Suggested password setting: 6443Y can not be set (the number can not be repeated), you can set a password, such as 643Y, press Y364 can also be unlocked. How do I install it? See instructions and video（The product is packed with full installation instructions and drilling templates） Change screw orientation control handle. Upgraded wider rubber mats. See product instructions to complete drilling. This latch comes with 2 latches (2-3/8'' and 2-3/4''). Suitable for wooden doors such as patio doors,、warehouses、offices ... Enter the code in any order to unlock the latch. 1. when not in need of locking what should be done? You can set the normal open mode, the latch retracts and doesn't work.2. Is this keypad door lock only for right hand door opening? No, it is not. Since the unlocking direction is adjustable, it can be used for both right and left hand doors.3. What is the length from the center of the latch to the edge of the door (latch center distance)? This latch comes with 2 latches (2-3/8'' and 2-3/4'')，Fits Standard 2 1/8" Pre-Drilled Holes4. Do I need to cut the screws? It may be necessary, normally it is not necessary, because the product package contains three different lengths of common length screws, if it does not fit, you will use a tool to cut the screws to complete the installation. 5.Does the product come with installation instructions and drilling template?Yes, the product is packed with full installation instructions and drilling templates.6. Does the code need to be entered sequentially to unlock the unit?Mechanical door locks do not require the code to be entered sequentially, for example, if the code is 5678, pressing 6578 or 8657 will also unlock the door.

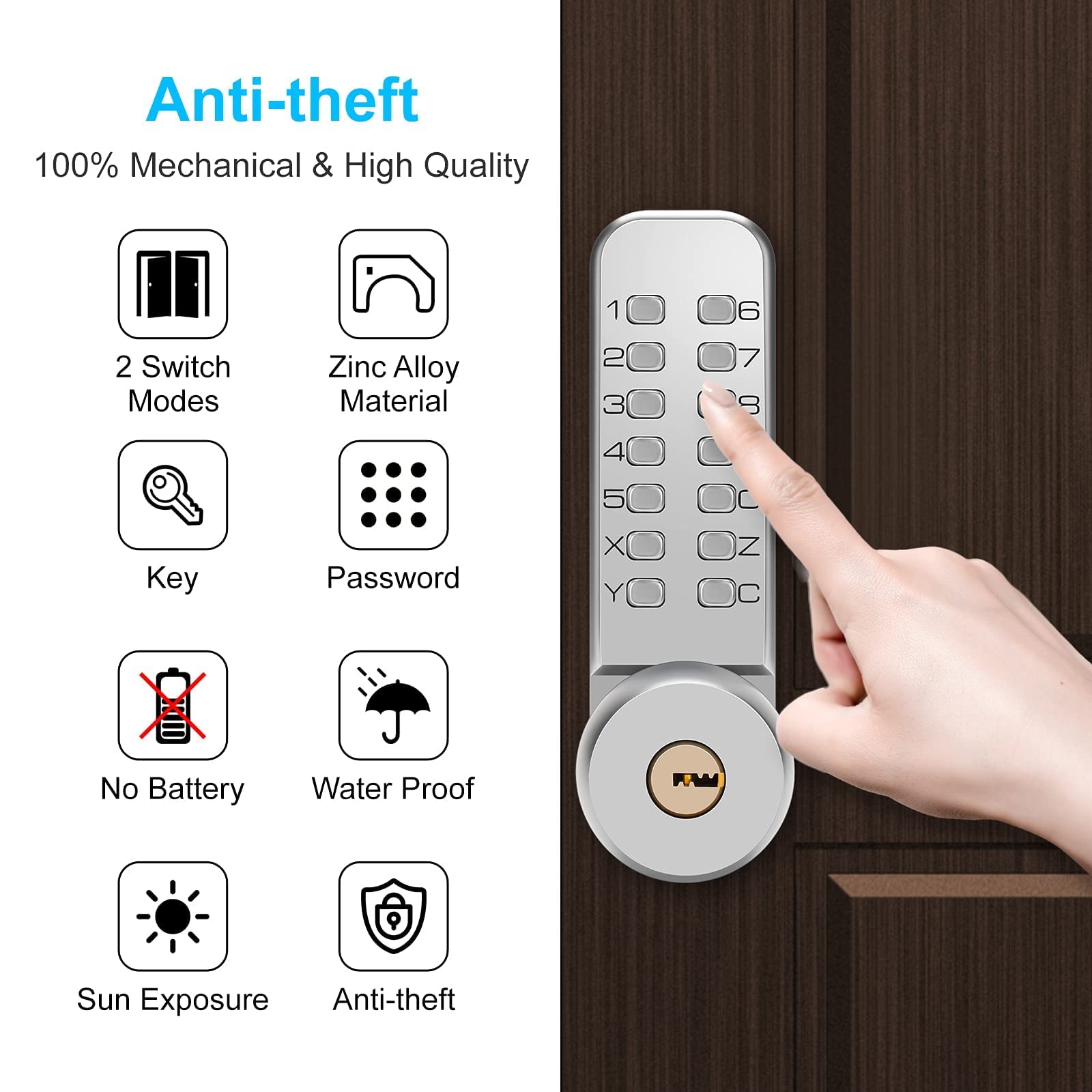

【No power needed】 Mechanical door lock without batteries, waterproof and anti-theft, easy to install, full mechanical digital keys, dual-use password and key, more convenient to open the lock, zinc alloy material, three-layer plating process, corrosion resistance.

【Mechanical Keyless Door Lock】Easy to enter the password, when pressing the wrong password, press "C" key to reset, then enter the correct password to open the lock normally.

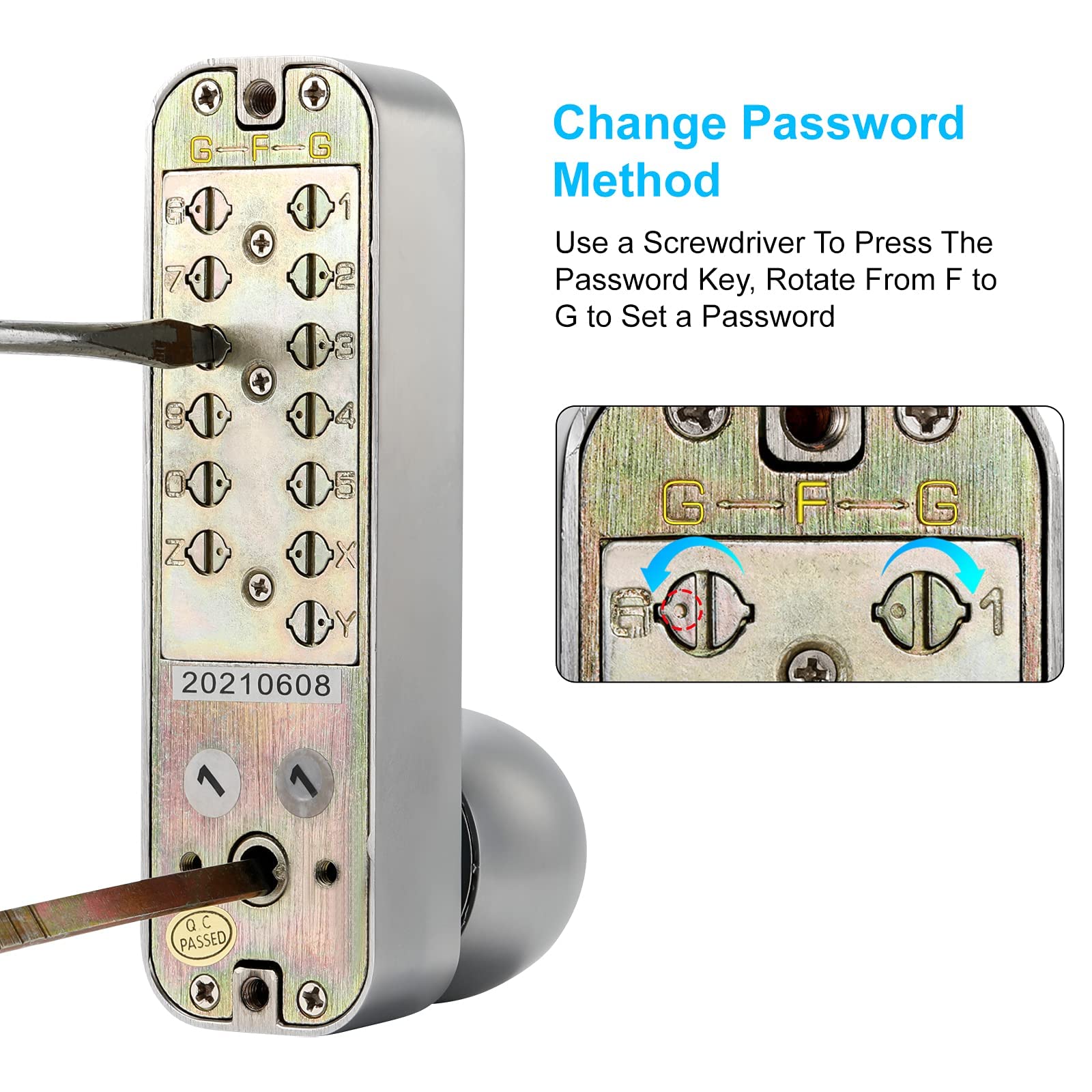

【Password combination】 Safe and fast, can set 4-6 digits password, press the password key with a screwdriver, then rotate it 180° from F to G to set the password.

【Wide range of applications】Mechanical password lock can be used for left and right hand doors, different installation methods, two channels can be switched at will, suitable for wooden doors, patio doors, access doors, outdoor doors, not applicable to glass doors.

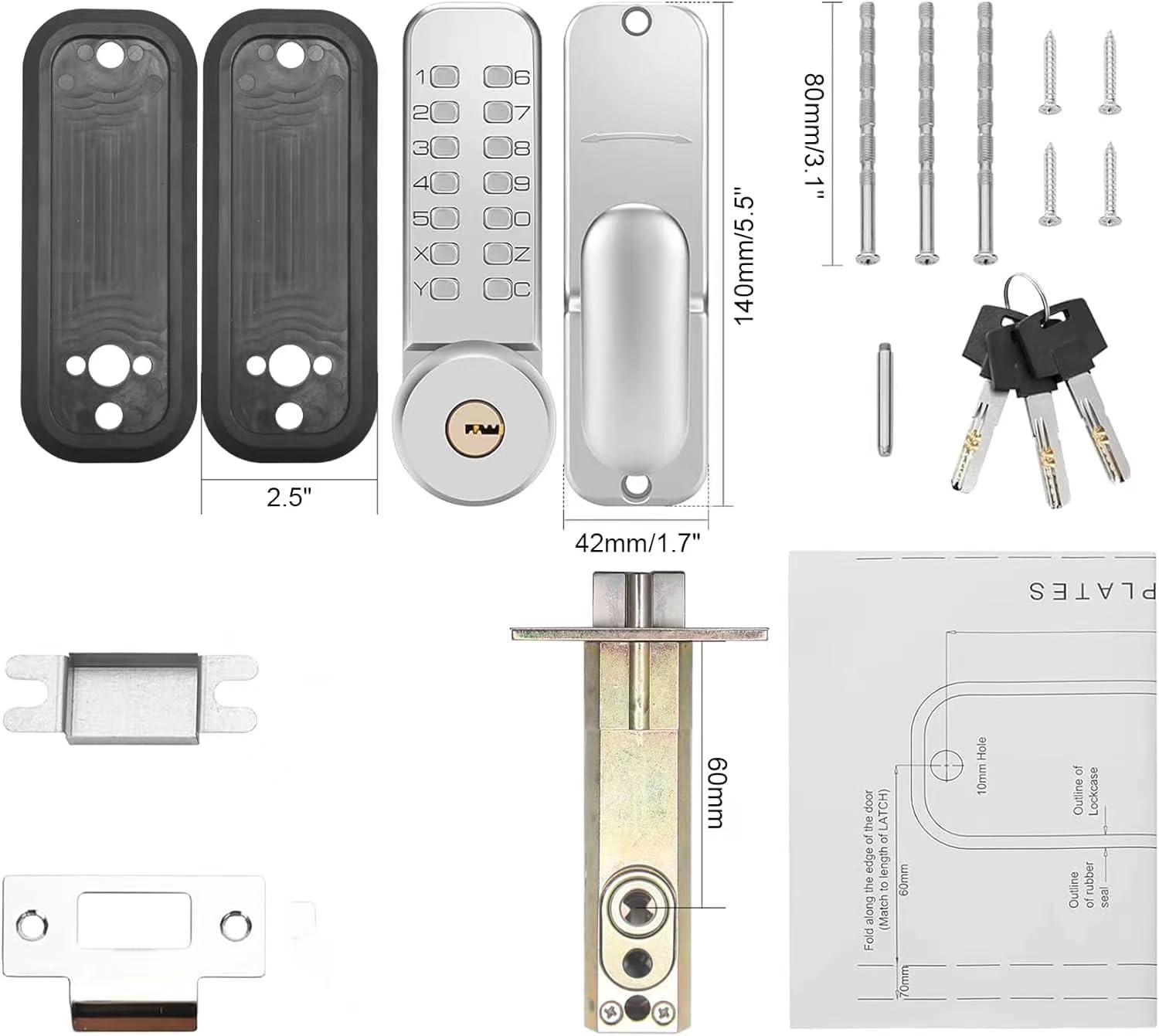

This door lock comes with 1 x 60mm (2-3/8'') cam which requires an intermediate to advanced level of installation skills, if you require a 70mm (2-3/4") extension cam, please contact us and we will get it for you as soon as possible.
